Nozzles

NOZZLE

Efficient cooling tower performance depends on uniform water distribution. AMARTAL nozzles provide wide-angle spray, ensuring even coverage and eliminating dry spots, while being lightweight and clog-resistant.

The SCSP (Solid Cone Square Pattern) nozzles deliver a uniform square spray and can be installed on MS, PP, PVC, or AC pipes (new or existing).

AMARTAL also offers a complete grid fill system with all required accessories. Made from durable ABS with nylon inserts, these nozzles support 30–120 GPM flow and cover 2'x2' to 4'x4' area per nozzle, ensuring easy installation and reliable performance.

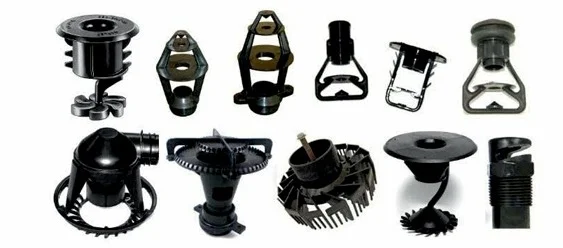

Cooling Tower Nozzle

Technical Specifications & Features

Our nozzles incorporate an anti-clogging design, making them highly reliable even when operating with suspended solids or contaminated water.

Key Features

  • Wide spray angle for maximum fill coverage
  • Advanced anti-clogging design
  • Ensures uniform water distribution
  • Durable ABS plastic construction

Technical Specs

  • Flow Range: 30 – 120 GPM
  • Coverage Area: 2x2 ft to 4x4 ft
  • Material: High-impact ABS plastic
  • Thread Size: 2.5 inch BSP
